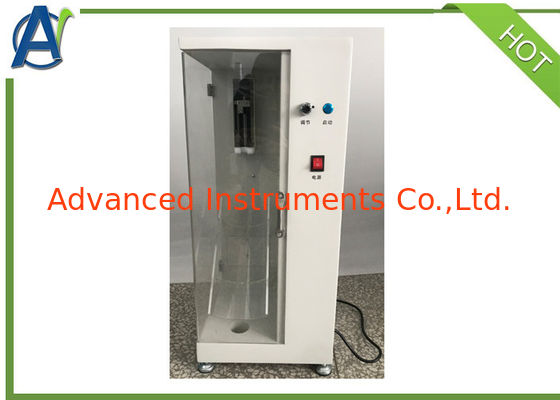

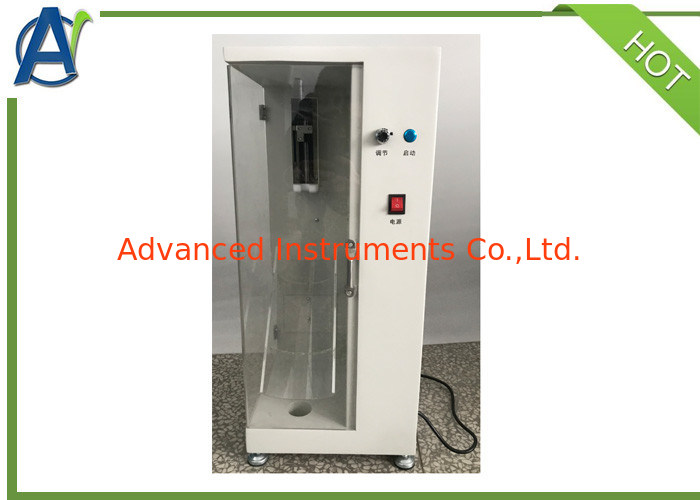

Name: ISO 6530 Liquid Penetration Test Apparatus for Protective Clothing
Brand: Advanced Instruments Co.,Ltd
SKU: AIC-6350
Availability: InStock

Главная страница Продукция аппаратуры лаборатории

ISO 6530 Liquid Penetration Test Apparatus for Protective Clothing

Подробная информация о продукте:

Место происхождения:	КИТАЙ
Фирменное наименование:	AI
Сертификация:	ISO
Model Number:	AIC-6350

Оплата и доставка Условия:

Количество мин заказа:	1 набор
Цена:	Договоренно
Упаковывая детали:	Картонная коробка
Время доставки:	20 дней
Условия оплаты:	Western Union, T/T, L/C
Поставка способности:	100 комплектов в месяц

Контакт

Подробное описание продукта

Test standard:	ISO 6530	Тестовый объект:	Защитная одежда
Dimension:	454052cm3	Масса:	25 кг
Цвет:	Белый	Источник питания:	AC220V, 50Hz, 200W
Inner diameter of test tank:	(125±5) mm	Length of test tank:	(300±2) mm
Syringe:	(10±0.5) ml	Needle hole diameter:	(0.8±0.02) mm

Standard:
ISO 6530: 2005:Protective clothing - Protection against liquid chemicals - Test method for resistance of materials to penetration by liquids.

Specification of AIC-6530 Liquid Penetration Test Apparatus:
1. Test tank: semi-cylindrical, inner diameter (125±5) mm, length (300±2) mm, inclined 45°.
2. Syringe: specification (10±0.5) ml, needle hole diameter: (0.8±0.02) mm.
3. Automatic injection system, the syringe continuously sprays (10±0.5) ml test within (10±1) s to ensure the accuracy and reliability of the test.
4. With organic glass protective cover:
Size (length*width*height cm): 45*40*52
Weight (kg): 25

Installation requirements of AIC-6530 Liquid Penetration Test Apparatus:

1	Power supply	AC 220V 50Hz 200W
2	Environment	23±5ºC, 65%±5%
3	Operation	test bench
