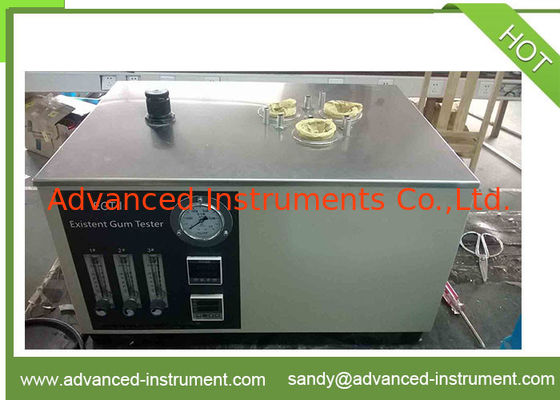

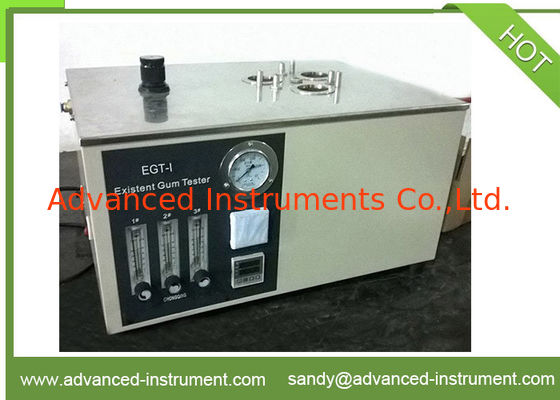

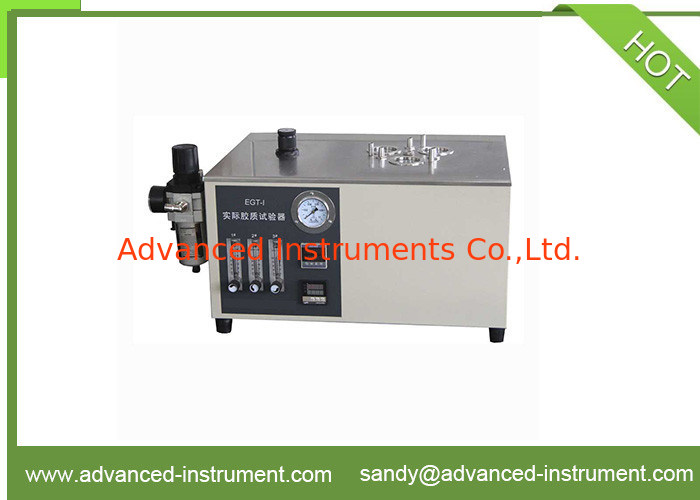

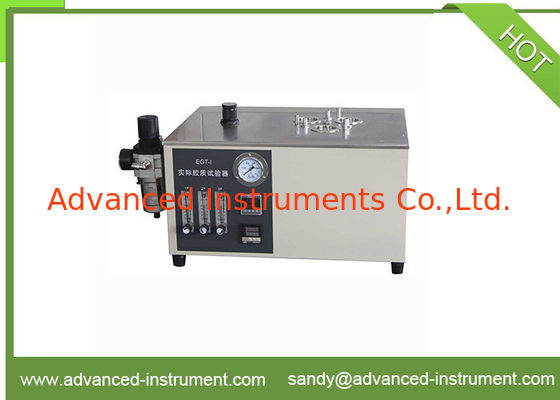

Name: ASTM D381 Fuel Oil Presence Test Equipment Spray Evaporation Method
Brand: Advanced Instruments Co.,Ltd
SKU: EGT-I
Availability: InStock

Главная страница Продукция Тестирование сырой нефти, топлива и дизельного топлива

ASTM D381 Fuel Oil Presence Test Equipment Spray Evaporation Method

Подробная информация о продукте:

Место происхождения:	КИТАЙ
Фирменное наименование:	AI
Сертификация:	ISO
Model Number:	EGT-I

Оплата и доставка Условия:

Количество мин заказа:	1 набор
Цена:	Договоренно
Упаковывая детали:	Hardboard
Время доставки:	20 дней
Условия оплаты:	Western Union, T/T, L/C
Поставка способности:	20 комплектов в месяц

Контакт

Подробное описание продукта

Test standard:	ASTM D381 Existent Gum Test Equipment	Test method:	Jet Evaporation Method
Working temperature:	(160~165)℃	overall dimension:	590480340mm
Источник питания:	AC (220 ± 10%) V, 50 Гц	Энергопотребление:	2,5 кВт
Блоки деятельности:	3	Гарантия:	1 год
Keyword:	Fuel Oil Presence Test Equipment

ASTM D381 Fuel Oil Presence Test Equipment Spray Evaporation Method

Summary

This existent gum tester is designed and made as per standards GB/T 8019 Standard test method for gum content in fuels by jet evaporation and ASTM D381Standard test method for gum content in fuels by jet evaporation. It is suitable to determine the existent gum content of aviation gasoline and motor gasoline (Not suitable to determine the existent gum content of aviation turbine fuel)

I. Main technical features

1. This existent gum apparatus equips a specially designed heating bath. The gas circuit is designed reasonably and the effect of evaporation is good.

2. The material of working bench is stainless steel. It has 3 sample holes. Each jet flow can be adjusted and controlled by an independent flowmeter. It can do 3 determinations at the same time.

3. This existent gum instrument is desktop structure. Simple design and easy to operate. It equips an air compressor to make it meet requirements of standard.

II. Main technical specifications

Power supply	AC(220±10%)V,50Hz,2500W
Dimension of evaporation bath	Φ260mm*130mm
Sample positions	3 positions
Dimension of sample positions	Φ51mm*70mm
Working temperature	(160~165)℃
Temperature control	Automatic
Temperature display	Digital display
Flow display	Displayed by a ball float type flowmeter.
Working pressure of air reducing valve	0.035MPa
Air source	External connection, over (1000±150)ml/s
Dimension	590480340mm (Thermometer holder is not included)

III.Accessories

No.	Item	Unit	Qty	Remarks
1	Air compressor	Set	1
2	Air compressor power supply line(Connected by air compressor specification requirements)	Piece	1	Instructions included
3	Trumpet type nozzle	Piece	3
4	Thermometer holder	Piece	3
5	Beaker	Piece	6
6	Thermometer (-5℃〜400℃, scale division is ±1℃)	Piece	4
7	15 A fuse (Φ5×20)	Piece	2
8	Air hose	Piece	1
9	Sintered glass funnel	Piece	1
10	Stainless steel forceps (25 cm)	Piece	1
11	Crucible pliers	Piece	1
12	Air filter assembly	Set	1	User-installed

There are 3 models Existent Gum Test Equipment,model I is 3 positions,model II is 5 positions,and model III is supplied with steam generator for aviation jet fuel analysis.
