Summary

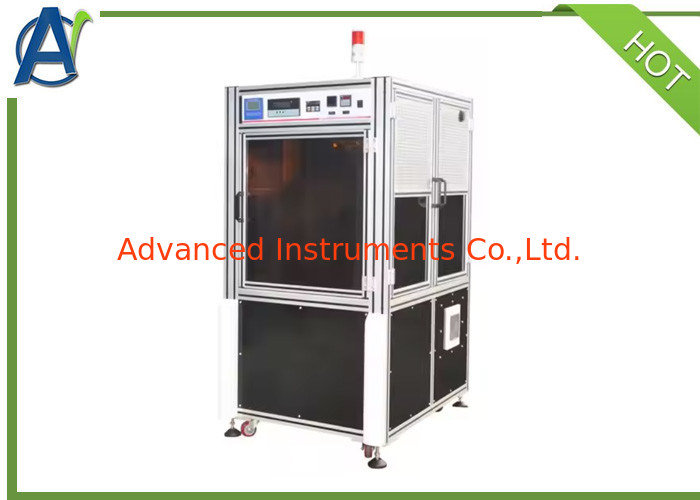

This Stroke Simulation Measuring Equipment is suitable for evaluating the lubricating performance and material compatibility of brake fluid.
Under specified test requirements, a total of 85,000 stroke tests are conducted to observe the changes in relevant materials.
Main Features
1. One cast iron brake master cylinder, with a cylinder diameter of 28.58mm to 28.65mm, and an aluminum alloy piston with a diameter of 28.52mm to 28.55mm.
2. Three brake slave cylinders, with a cylinder diameter of 28.60mm to 28.66mm, and an aluminum alloy piston with a diameter of 28.52mm to 28.55mm.
3. A set of specialized pump body adjustment installation plates.
4. The main pipeline is made of uncoated steel pipe.
5. A standard driving mechanism capable of generating a working pressure of 8 Mpa.
6. Digital display of stroke rate with an adjustable device.
7. Radiation-free heating system.
8. Rubber cups that meet standard requirements.
9. Microcomputer temperature controller with digital display, temperature control range: 20~150℃±2℃, PT100 temperature sensor for high precision.
10. Pressure gauge displays working pressure, with a precision pressure regulating valve for adjustment, pressure: 7Mpa±0.3 Mpa.
11. Digital timer with audible alarm.
12. Fully enclosed compressor refrigeration, with gas circulation to reduce the temperature of the test chamber.
13. Integrated structure for easy operation.
Technical specifications
| 1 |
Power supply |
AC 220 V±10%, 50 Hz |
| 2 |
Temperature control range |
20~150℃±2℃ |
| 3 |
Cooling method |
Compressor |
| 4 |
Temperature control method |
Digial PID temperature controller |
| 5 |
Timing method |
Digital timer |
| 6 |
Alarming method |
Buzzer |
| 7 |
Pressure range |
7Mpa±0.3 Mpa |
| 8 |
Pressure Control |
Precision pressure regulating valve |
| 9 |
Pressure Display |
Precision pressure gauge |
| 10 |
Stroke Rate |
1000 cycles/h |
| 11 |
Stroke Count |
85,000 cycles |
