Product description:

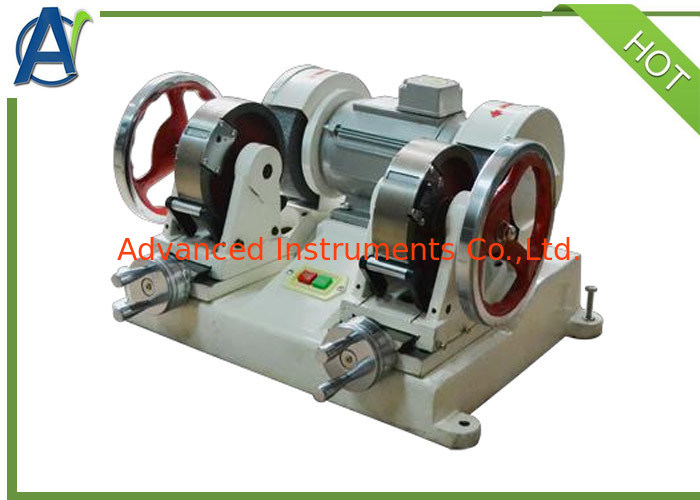

Double-end grinding device is used to grind the rubber, plastic and the other similar sample to a certain thickness for the test of other testing device, with advantages of both precision grinding wheel and fine grinding wheel working at the same time.
Standard:
• GB/T 2951-2008
Technical parameters:
• Grinding wheel speed: 12m/s
• Grinding wheel: G260APRI 170×40×32, 36 grains G260APRI 170×40×32, 80 grains
• Motor:GO2-11-40.6W, three- phase 380V, 1400r /min；
• Working dimensions: diameter: 160mm×44mm, height of center: 214mm
• Working wheel stroke: 20mm
Specifications:
• Overall dimensions: 500mm×400mm×314mm
• Power supply: AC three- phase 380V 50/60Hz 3A
• Weight: 80kg
