Summary
This IR FAME Analyzer is designed and manufactured in accordance with the requirements of the People's Republic of China Standard GB/T 23801 "Determination of fatty acid methyl ester content in middle distillate oil by infrared spectroscopy" and the industry standard NB/SH/T 0916 "Determination of biodiesel (fatty acid methyl ester) content in diesel fuel by infrared spectroscopy".

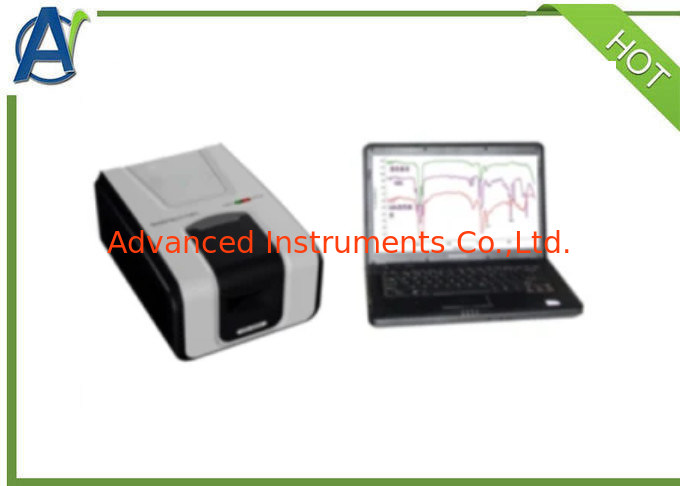

This IR FAME Analyzer adopts Fourier transform infrared spectroscopy, which can quickly, accurately, safely and reliably test the content of fatty acid methyl ester (FAME) in middle distillate oil and diesel fuel. It is an ideal instrument for detecting the content of fatty acid methyl ester (FAME) in oil refining enterprises, relevant colleges and universities, scientific research institutions, and users of middle distillate oil and diesel fuel.
I.Main technical features
1. High end: intelligent human-computer interaction design, small desktop structure, suitable for laboratory and mobile use in all units.
2. Advanced: powerful software, advanced instrument technology, self diagnosis, automatic sample detection, spectrum processing, etc.
3. Accuracy: automatic and intelligent detection, eliminate the interference of human factors, and accurately test the content of fatty acid methyl ester (FAME).
4. Stability: imported high-end lasers, beam splitters, detectors and other key devices are used to ensure high-quality and stable operation of the instrument.
5. Fast: set the standard sampling method, and the test results can be directly issued 40 seconds after the sample is tested.
6. Unique: imported high-energy, long-life light source, unique automatic sleep technology, improve the service life of the light source.
7. Saving: the consumption of consumables is small. In addition to protecting the crystal plate and window, the maintenance cost is low.
8. Safety: equipped with a special intelligent drying oven, automatically remind to replace the desiccant, and solve the biggest hidden danger in the infrared spectrum test.
II.Main technical parameters and indicators
1. Spectral range: 7800 ~ 350 cm-1
2. Resolution: better than 1.0 cm-1, continuously adjustable
3. Signal to noise ratio: 30000:1 (P-P value, 4cm-1, one minute scanning)
4. Beam splitter: germanium plating on imported KBr substrate
5. Light source:the IR FAME Analyzer adopts imported high-energy, high-efficiency, long-life light source with automatic sleep function to improve the service life of the light source
6. Interferometer: the latest magnetic levitation plane mirror electromagnetic drive, 30 degree incident angle Michelson interferometer
7. Receiver: imported high-sensitivity DLATGS receiver with moisture-proof film
8. Content test: according to the maximum absorption peak of 1745cm-1 of the infrared spectrum of the sample test, calculate and determine the content of fatty acid methyl ester (FAME) through the standard formula
9. Communication interface: Standard USB2.0 high-speed two-way communication
10. Supporting systems: the IR FAME Analyzer supports Windows XP, Windows Vista, Windows 7, Windows 8, windows 10.
