| Место происхождения: | КИТАЙ |
| Фирменное наименование: | AI |
| Сертификация: | ISO |
| Model Number: | KV-II |
| Количество мин заказа: | 1 набор |
|---|---|
| Цена: | Договоренно |
| Упаковывая детали: | Фанерный чехол |
| Время доставки: | 25 дней |
| Условия оплаты: | Western Union, T/T, L/C |
| Поставка способности: | 50 комплектов в месяц |
| Тестовый стандарт: | ASTM D445 | Источник питания: | AC (220 ± 10%) V, 50 Гц |
|---|---|---|---|
| Temperature range: | 15ºC~120ºC | Отображать: | ЖК -дисплей |
| Контроль: | Сенсорный экран | Рабочее положение: | 2 единицы |
| Dimension: | 550mm×600mm×1350mm | Масса: | 99 кг |
| Storage: | 100 test records | OEM-сервис: | Доступный |
Summary

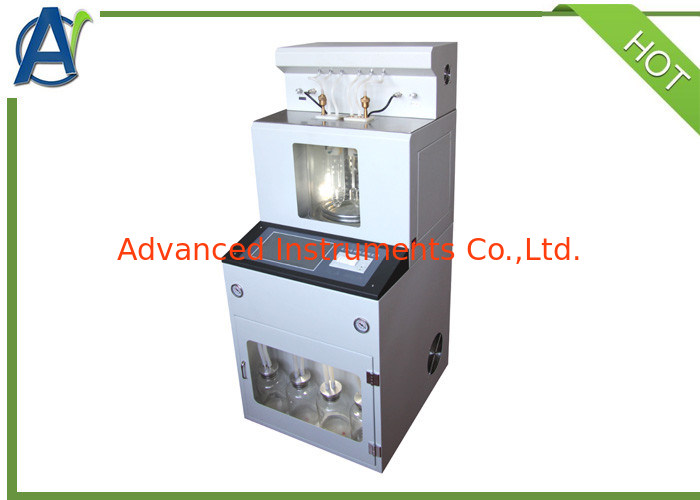

The Auto Kinematic Viscosity Tester is designed and made as per national standard of People's Republic of China GB/T 265 Petroleum products-Determination of kinematic viscosity and calculation of dynamic viscosity and GB/T1632-93 Test Methods for Viscosity Number and Limiting Viscosity Number of Polymers in Dilute Solution.
The Auto Kinematic Viscosity Tester is suitable to determine Kinematic viscosity, viscosity number, and limiting viscosity number of oils and polymer in dilute solution. It has been widely used in the field of pharmaceutics, petroleum, chemistry, scientific research, and metrology.
I. Main technical features
1. The Auto Kinematic Viscosity Tester adopts new type temperature sensor and calculation way,the resolution can reach 0.001ºC,accuracy is ±0.04ºC.
2. This kinematic viscometer can save 100 test records.
3. This kinematic viscosity instrument adopts micro-computer as the central control component,with 10.2 inch color LCD display and touch screen. It achieves prompt type operation to judge the fault,error message and trouble shooting capacity.
II. Main technical specifications
| 1 | Power supply | AC(220±10%)V,50Hz |
| 2 | Total power consumption | ≤2100W |
| 3 | Temperature sensor | Pt1000 |
| 4 | Temperature range | 15ºC~120ºC |
| 5 | Temperature resolution | 0.001ºC |
| 6 | Temperature control accuracy | ±0.04ºC |
| 7 | Timing accuracy | ±0.1s,resolution ratio 0.01s |
| 8 | Working position | 2 units |
| 9 | Display mode | Colorful touch screen |
| 10 | Suitable environment | temperature 15ºC~35ºC, humidity:≤85% |
| 11 | Dimension | 550mm×600mm×1350mm(L×W×H) |
| 12 | Net weight | 99KG |
![]()
