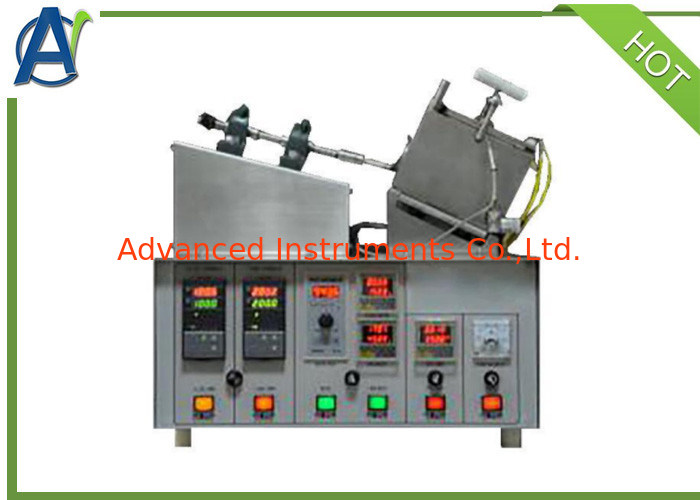

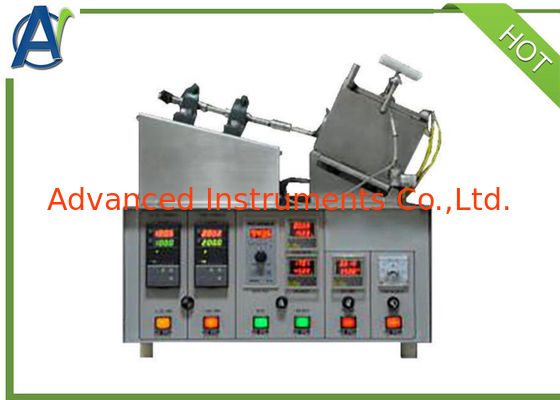

Digital Lubricating Oil Panel Coking Test Instrument by FTM 791-3462

The panel coking test instrument determines the tendency of finished oils to form coke when in contact with surfaces at elevated temperatures for short periods. A sample of oil is mechanically splashed against an aluminum test panel at elevated temperature. After a specified test period, the amount of coke deposited on the panel is determined by weight.


Feature
1.The digitally controlled panel coking test instrument is suitable for finished lubricating oil.
2.The digital display heater independently controls the temperature of the test panel and the temperature of the oil tank. The mechanical splasher is equipped with digital display control, and the splashing speed range is 0-1800rpm.
3.The high-precision flowmeter allows the introduction of corrosive acid gas to increase the test accuracy.
4.The panel coking test instrument is equipped with digital timer. The hinged safety cover is equipped with an exhaust port and a safety interlock switch. When the cover is raised, the interlock switch will cut off the power supply of the drive motor to ensure safe operation.

Technical Specifications
