Name: Oil Freezing Point & Cold Filter Clogging Point Detection Equipment
Brand: Advanced Instruments Co.,Ltd
SKU: SPT-I
Availability: InStock

Главная страница Продукция Оборудование для испытания нефтепродуктов

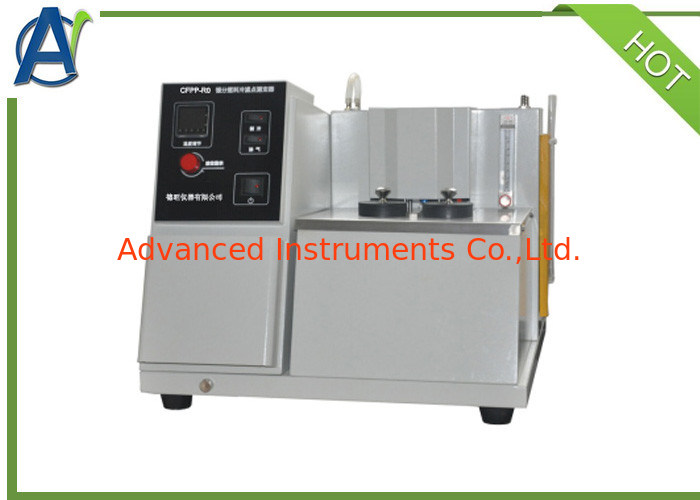

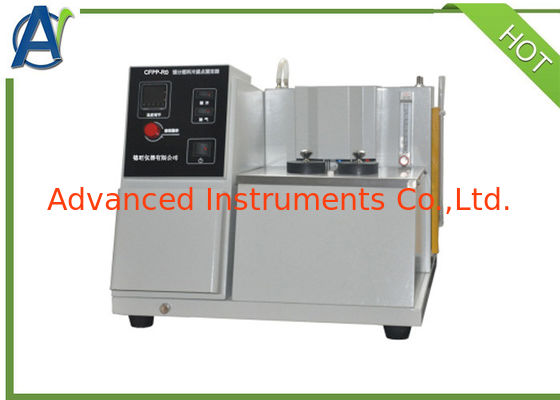

Oil Freezing Point & Cold Filter Clogging Point Detection Equipment

Подробная информация о продукте:

Место происхождения:	КИТАЙ
Фирменное наименование:	AI
Сертификация:	ISO
Model Number:	SPT-I

Оплата и доставка Условия:

Количество мин заказа:	1 набор
Цена:	Договоренно
Упаковывая детали:	Hardboard
Время доставки:	20 дней
Условия оплаты:	Western Union, T/T, L/C
Поставка способности:	20 комплектов в месяц

Контакт

Подробное описание продукта

Стандарты:	GB/T510	Application:	Testing Solidifying Point&CFPP
Энергопотребление:	1000 Вт	Гарантия:	1 год
Size:	620mm×460mm×355mm	Power supply:	AC（220±10%）, 50Hz
Рабочая камера:	Два	Temperature range:	Ambient to -70℃

Oil Freezing Point & Cold Filter Clogging Point Detection Equipment

Summary
This instrument is newly designed and made as per national standard of People's Republic of China GB/T510 Standard Test Method for Solidifying Point of Petroleum Oils.It is suitable to determine solidifying point of petroleum products. It is widely used in oil exploitation companies, petroleum manufacturers, petroleum users, colleges and scientific research institutes.

I. Main technical features
1. The material of workbench is stainless steel. It has two cooling baths in one chamber. The two cooling baths are the same in temperature.
2. It adopts special technology. It is no need to use cooling liquid in cold chamber. The cooling rate is fast and efficiency is high. The temperature in cooling baths is uniform and it can reach -70℃. The precision is ±0.5℃.
3. The instrument adopts bench structure. The design is simple and easy to use. Operator can do solidifying point test as long as buying this equipment.

II. Main technical specifications
1. Power supply: AC(220±10%), 50Hz
2. Working chamber: Two test baths in one chamber. The temperatures are the same.
3. Temperature range: Ambient to -70℃
4. Temperature control accuracy: ±0.5℃
5. Refrigeration: New-type refrigeration compressor
6. Ambient temperature: ≤30℃
7. Relative humidity: ≤85%
8. Maximum power consumption: 1000W
9. Dimension: 620mm×460mm×355mm

III.SPT-I Solidifying Point Testing Eequipment Accessories and Documents List

No.	Name	Unit	Qty	Memo
1	SPT-I Solidifying Point Testing Equipment	Set	1
2	Thermometer(-80～60)℃ scale mark 1℃	Piece	1
3	Stopping ring of thermometer(1#)	Piece	2
4	Fuse 10A(Ф5×20)	Piece	2
5	Bath cover	Piece	2
6	Operation manual	Piece	1
7	Temperature control device usage manual	Piece	1

IV,SPT-I Solidifying Point Tester's Reagent and Auxiliary Equipments

No.	Name	Specification	Quantity	Memo
1	Absolute ethyl alcohol	Analytical pure 500ml	3 bottles
