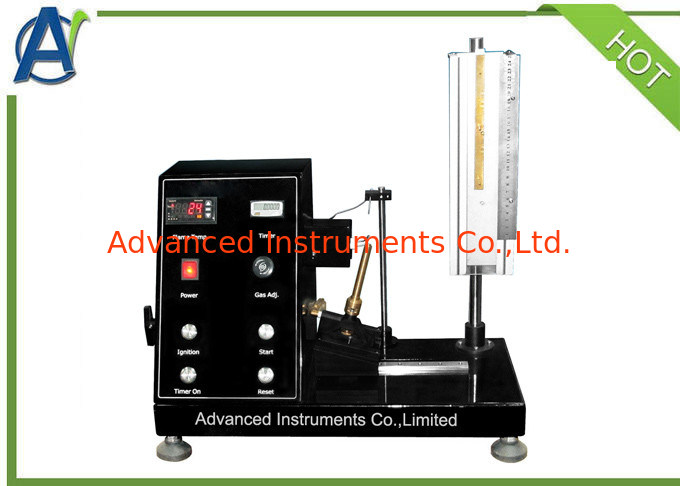

Introduction:
This Vertical Flammability Tester is suitable for the flame height, burning time and loss of mass of Rigid Thermoset Cellular Plastics in a vertical position. It meets the standards of GB/T 8333 and ASTM D3014A.
Main features:
1. ASTM D3014A Vertical Flammability Tester is equipped with Bunsen burner, which can provide a test temperature at 900℃;
2. The thermocouple can be moved manually to avoid damage caused by prolonged exposure to flame;
3. The test can be completed with one button, and the burner adopts automatic driving mode;
4. Through the test steel ruler, the burning length can be displayed;
5. The gas flow can be adjusted and cut off automatically;
6. The test box is treated with Teflon to avoid corrosion.
Specifications of ASTM D3014A Vertical Flammability Tester:
| 1 |
Power supply |
220V,50HZ |
| 2 |
Dimension |
420 mm (W) x 350 mm (D) x 520 mm (H) |
| 3 |
Weight |
15KG |
| 4 |
Environmental temperature |
10°C ~ 35°C |
| 5 |
Installation area |
with fume hood |
| 6 |
Gas |
Industrial propane |
