ASTM D2170 High Temperature Kinematic Viscosity Tester for Bitumen or Asphalt

Подробная информация о продукте:

Место происхождения:	КИТАЙ
Фирменное наименование:	AI
Сертификация:	ISO
Model Number:	KV-H

Оплата и доставка Условия:

Количество мин заказа:	1 ПК
Цена:	Договоренно
Упаковывая детали:	Фанерный чехол
Время доставки:	10 дней
Условия оплаты:	Т/Т, Вестерн Юнион
Поставка способности:	1000 pc/month

Контакт

Подробное описание продукта

Compaction times:	ASTM D2170	Источник питания:	AC 220 В ± 10%, 50 Гц
Temp.control range:	Ambient to 135.0℃(or 180℃)	Bath volume:	23 L
Энергопотребление:	1800 Вт	Size:	530400670mm
Purpose:	determine the viscosity of asphalt

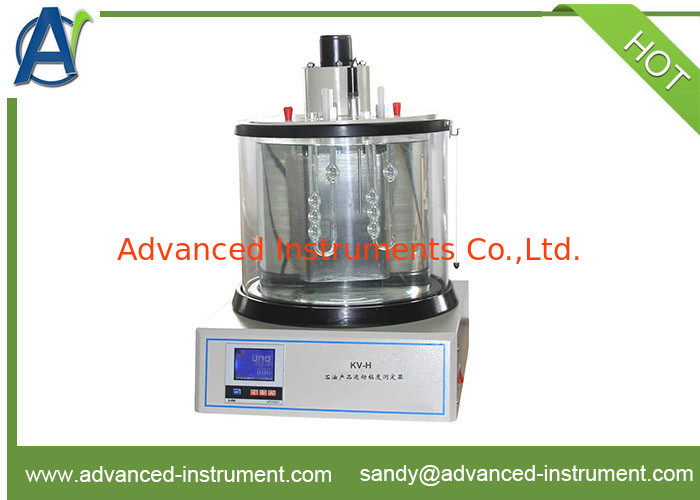

High Temperature Kinematic Viscosity Tester

I. Introduction:
The asphalt kinematic viscosity tester is designed and made as per the national standard of People’s Republic of China GB/T1841 Standard Test Method for Viscosity of Polyolefin Resin Solution. It is used to determine the viscosity of decahydronaphthalene solution of polythene and polypropylene at the stipulated temperature.

The bitumen kinematic viscometer can also be used to determine the viscosity of asphalt at the stipulated temperature as per the industrial standard of People’s Republic of China T0619 Asphalt Kinematic Viscosity Test (Capillary Viscometer Method).

II. Features:
1. High precision digital temperature controller. Electric stirring motor.
2. High temperature resistant glass bath. Double layer structure.
3. This asphalt viscometer adotps desktop structure. All-in-one design.
4. The maximum heating temperature is 135℃(or 180℃).

III.Specifications:

Power supply	AC 220 V±10%, 50 Hz
Heating power	1700 W
Temperature range	Ambient to 135.0℃(or 180℃)
Temperature control accuracy	±0.1℃
Mercury-in-glass thermometer (Scale division 0.1℃)	Range 100℃~150℃(for maximum 135.0℃). Range 100℃~150℃ and range 150℃~200℃(for maximum 180.0℃).
Bath capacity	about 23 L
Sample quantity	You can make determination using 3 capillary viscometers at a time.
Stirring motor	(1) Power: 6W (2) Speed: 1200 RPM
Ambient temperature: -10℃~+35℃	-10℃~ +35℃
Relative humidity: ＜85％	＜85%
Temperature sensor: RTD, Pt100	RTD, Pt100
Maximum power consumption	1800 W
Capillary viscometer	One group of Cannon-Fenske Opaque capillary viscometers; 7 pieces in total. They are N0.200, 300, 350, 450, 500 and 600 (The inner diameters of R tube of them are 1.02, 1.26, 1.48, 1.88, 2.20, 3.10 and 4.00 mm respectively)
Overall dimension	530400670mm(Bath is included)

IV.Accessories

No.	Item	Unit	Qty	Remarks
1	Countercurrent capillary viscometer (a group)	Piece	7
2	Mercury thermometer (100~150℃, scale division is 0.1℃)	Piece	1	Standard configuration
2	Mercury thermometer (150 ~200℃, scale division is 0.1℃)	Piece	1	According to the users requirements to purchase
3	Weight ball	Piece	1
4	Sensor	Piece	1
5	Sensor sheath	Piece	1
6	Bakelite cover	Piece	4
7	Stopping ring for thermometer (1#)	Piece	2
8	Capillary viscometer holder	Piece	4
9	Silica gel stopper (3#)	Piece	2
10	15A fuse (Ф6×30)	Piece	4
11	Round glass	Block	1
