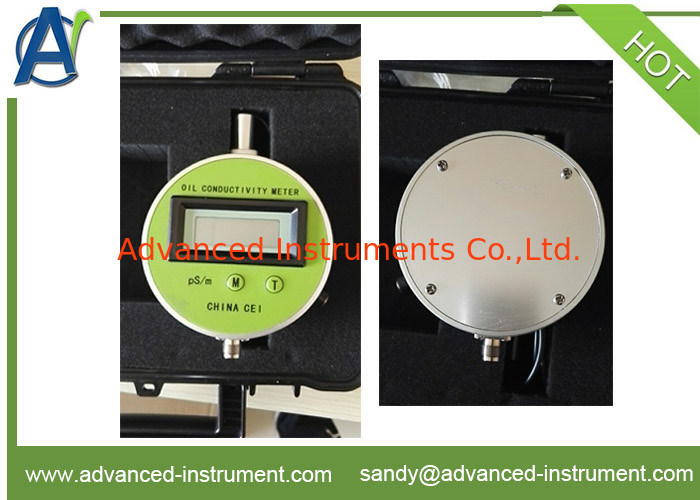

ASTM D2624/D4308 Electrical Conductivity Meter
Introduction
This electrical conductivity meter AIC-08 is mainly used to determine conductivity of light petroleum,such as gasoline,kerosene and diesel etc.AIC-08C is mainly used to determine conductivity of compressor oil,lubricating oil. By measuring conductivity,we can qualitatively know the Electrostatic safety,insulating performance,purity and other physical characteristics rapidly.
Reference standards:
- ASTM D4308-89
- ASTM D2624
- ISO 6297
- GB 6950-2001
- GB/T 6539-1997
- GB 13348-1992
Technical specifications
1.Measuring range:
| Model |
Measuring range and resolution |
Conductivity measuring value and accuracy |
Main application |
| AIC-08 |
0～1999pS/m
±1pS/m
|
0～1999pS
±(2%+2pS)
|
Aviation kerosene
|
| AIC-08C |
0～199.99nS/m
±1nS/m
|
0~199.99nS
±(2%+2nS)
|
Compressor oil,lubricating oil |
(pS/m is unit of conductivity,equivalent to ‘cu’);
2.Structural constant and accuracy of conductivity cell:1.00/m±5%;
3.Reading mode:LCD digital display;
4.Power supply: in-built 6F22 type 9V battery,intermittently power supplying.(for exporting,the battery need to prepare by users);
5.Working condition: Temperature: 0~+40℃; Relative humidity:≤85%
6.Structure characteristics:
Half-sealed structure
iaAT5 design
Small and portable
7.Overall dimension:
Main unit:φ100×35mm
Electrode:φ14×140mm
8.Weight:0.5KG
