Needle Flame Test Instrument by IEC60695-2-2 Fire Hazard Testing Method

Подробная информация о продукте:

Место происхождения:	КИТАЙ
Фирменное наименование:	AI
Сертификация:	ISO
Номер модели:	NFT

Оплата и доставка Условия:

Количество мин заказа:	1 набор
Цена:	Договоренно
Упаковывая детали:	Фанерный чехол
Время доставки:	30 дней
Условия оплаты:	Western Union, T/T, L/C
Поставка способности:	20 комплектов в месяц

Контакт

Подробное описание продукта

Тестовый стандарт:	IEC60695-2-2, IEC60695-11-5	Источник питания:	AC220V ± 10% / 50 Hz
Temperature range:	0--1000 ºC	Измерение:	L1120 * W520 * H1250mm
Цвет:	Белый	ключевое слово:	Измерительный прибор для испытания огня иглы

Needle Flame Test Instrument by IEC60695-2-2

Introduction
Needle Flame Test Instrument is designed according to international standards IEC60695-2-2 and IEC60695-11-5.The instrument applies for lighting, low-voltage electrical equipment, household appliances, electrical machines, motors, power tools, electronic equipment, electrical instruments, electrical connectors, accessories and other electrical and electronic equipment and parts, component research, production and quality control departments and insulating materials , plastic or other solid combustible materials industry to carry on small-flaming ignition experiments.
Needle flame test instruments uses standard size (Φ0.9mm) needle burner .and burns the sample with specific gas (butane) at the angle of 45 °.It determines the ignition risk of the small-flame caused by fault conditions in the equipment by testing the sample burning situation,burningtime and burning length

Technical Parameters:

1	Needle burner	It is made of stainless steel:the hole dia. 0.5mm ± 0.1mm, diameter≤0.9mm, length≥35mm
2	Burner flame angle	0- 45 ° (arbitrary adjustment)
3	The combustion gases	95% butane gas or propane gas
4	Subplate	white pine plank ( 10mm), Surface covered by standard silk paper 200mm ± 5mm below the flame
5	Temperature range	0--1000 ºC
6	The flame temperature requirements	100 ± 2 ºC ~ 700 ºC ± 3 ºC, Heating rise time: 23.5 ± 1.0s;
7	The flame height	12mm ± 1mm
8	Ignition time	0s ~ 999.9s adjustable, generally 30s
9	Burning time	0s ~ 999.9s, automatic recording, manual pause
10	Test Space	≥0.5m3, black background, (can be customized cubic 0.75 m3 or 1 m3 according to customer requirements)
11	Temperature sensor	K-type insulation-sheathed thermocouple (Φ0.5mm)
12	Dimensions	L1120 * W520 * H1250mm
13	The diameter of exhaust	Φ100mm
14	Power supply	220V / AC, 50Hz

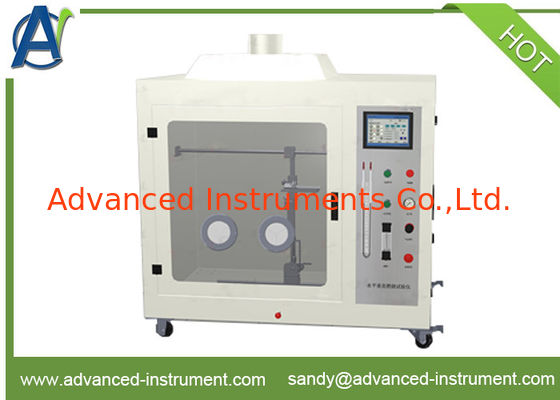

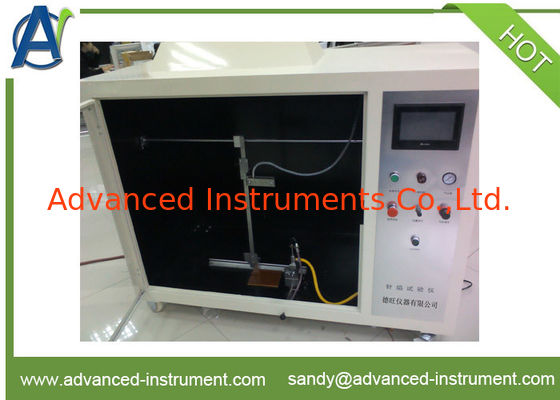

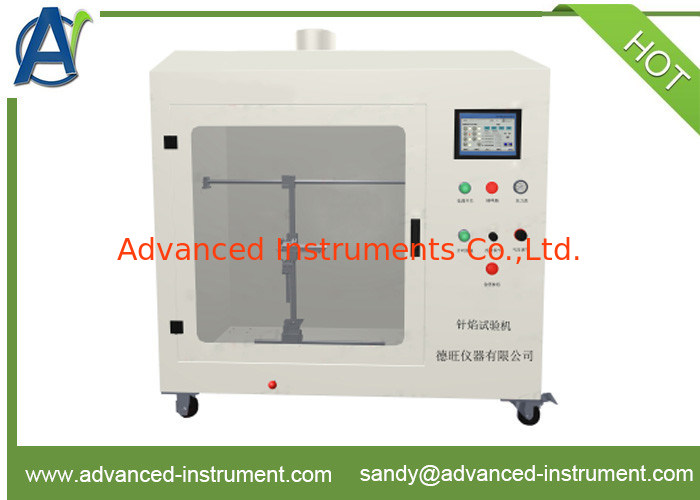

Photo of Needle Flame Test Instrument by IEC60695-2-2

Needle Flame Test Instrument by IEC60695-2-2 Fire Hazard Testing Method
