ASTM D5293 Apparent Viscosity of Engine Oils Tester Using Cold Cranking Simulator

Подробная информация о продукте:

Место происхождения:	КИТАЙ
Фирменное наименование:	AI
Сертификация:	ISO
Номер модели:	CCS-I

Оплата и доставка Условия:

Количество мин заказа:	1 набор
Цена:	Договоренно
Упаковывая детали:	Hardboard
Время доставки:	20 дней
Условия оплаты:	L/C, T/T, Western Union
Поставка способности:	20 комплектов в месяц

Контакт

Подробное описание продукта

Стандарты:	GB/T6538, ASTM D2602, ASTM D5293	Test method:	CCS Cold Cranking Simulator
Ряд температуры контролируя:	-5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC	Контроль:	ПК
Источник питания:	AC220V, 50 Гц	Измеренный диапазон:	1500~15000CP
Гарантия:	1 год	Операция:	Автоматический

Apparent Viscosity of Engine Oils Tester

Name: ASTM D5293 Apparent Viscosity of Engine Oils Tester Using Cold Cranking Simulator
Brand: Advanced Instruments Co.,Ltd
SKU: CCS-I
Availability: InStock

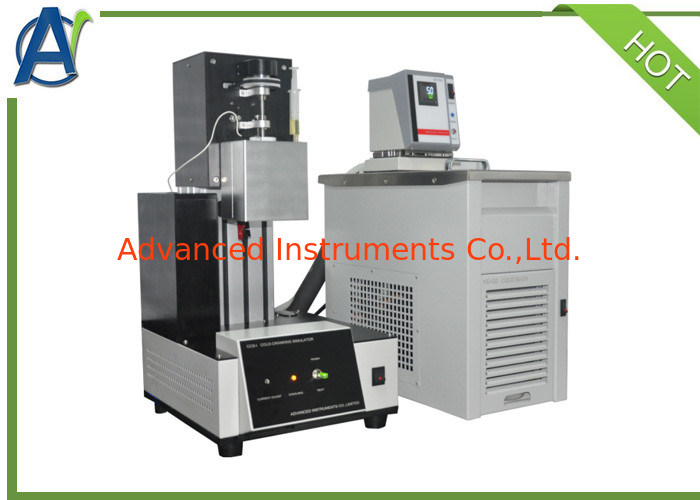

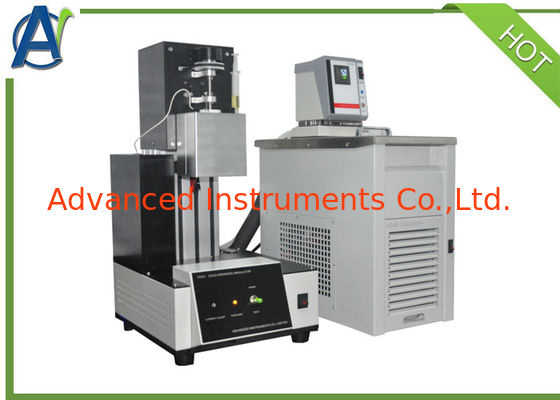

ASTM D5293 Apparent Viscosity of Engine Oils Tester Using Cold Cranking Simulator

Introduction:

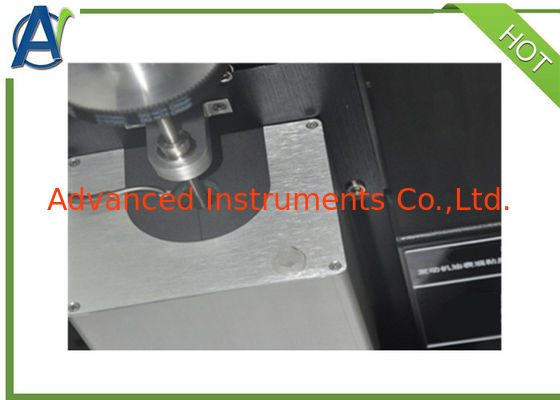

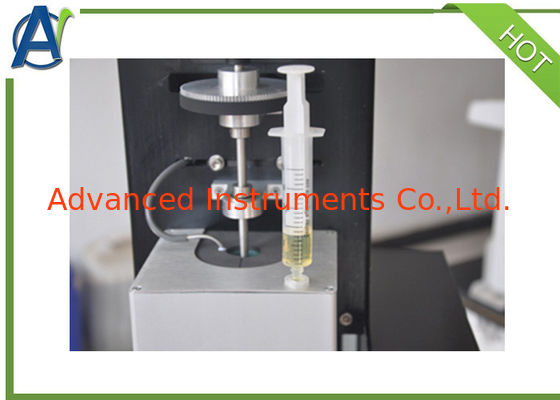

Cold Cranking Simulator is used to measure the apparent viscosity of engine oil at low temperature (- 35 ºC ~ - 5 ºC). Method summary: Drive a rotor closely matched with the stator by a DC motor, and fill the gap between the rotor and the stator with samples.
The temperature is controlled by the temperature control system, and the motor speed is corrected with standard oil to make it a function of viscosity. Determine the sample viscosity by measuring the rotation speed. The rotor and stator system of the Cold Cranking Simulator uses a thermoelectric temperature control system. Compared with the previous model, the temperature control is improved, the preheating time is reduced, and the measurement accuracy is improved. The compact structure is easy to install and use.

Features:

1.The CCS machine can automatically detect rotation speed,control current,and reduce error;
2.Refrigerated by semi-conductor;
3.The Apparent Viscosity Tester adopts imported motor,accuracy is high;
4.LCD displays all working status;
5.It can connect printer to print out result;
6.Result can be calculated automatically after calibrating with standard oil;
7.Micro-computer controlling,Windows operation system,complete English interface;
8.Upgraded rotor,low rotor torque test status,high repeatability;
9.Automatically generate calibration curve,directly display measured result of viscosity;
10.All test procedures are controlled automatically,when test is over,it can stop and raise temperature automatically.
11.TheApparent Viscosity Tester recommends refrigeration temperature automatically
12.Rotary encoder detects rotation speed;
13.Measuring range:1500~15000CP;
14.It can edit 10 types standard oil results;
15.This apparent viscosty tester is equipped with low temperature cooling device.

Specifications:

Applicated standard	GB/T6538, ASTM D2602,ASTM D5293
Refrigeration method	Semi-conductor
Circulatioini method	multifunctional plastic steel pump
Temp.controlling method	Digital PID temperature controller
Detection method	Manual sampling,automatic cleaning,automatic test
Data processing	Automatic saving
Temp.controlling range	-5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC (optional -40ºC)
Power supply	AC220 V 50Hz
Temperature controlling accuracy	±0.02ºC
Working units	1
